Chapter 1: Safety Riding Instructions

1. Do not use the electric motorcycle before reading this manual and understanding its performance. Also please do not allow anyone who is unsure how to operate it to use it.
2. For everyone’s safety , please obey traffic rules.please wear a safety helmet, goggles, non-slip shoes, gloves, and other protective equipment.
3. Before riding, a thorough inspection of the motorcycle must be conducted to prevent accidents and damage to components.
4. Please make sure the foot brake is applied before turn on the power, in case of accidental misoperation that could cause the scooter to rush forward.
5. Properly use turn signals and horn to attract the attention of others and ensure safety.
6. Strictly prohibit lane-scrambling and driving at high speeds with excessive loads.
7. Hold the steering wheel firmly with both hands while driving, please do not drive with one hand.
8. High-pressure water washing is strictly prohibited.Please drive at a low speed in rainy or snowy weather on the slippery road.
9. After driving, please check the battery level to ensure ease of use.
10. Please use this type of electric two-wheeled motorcycle strictly according to the requirements in the manual.

Chapter 2:Configuration

Description
size	package size	1692*682*1095mm
	dimensions	1730*580*880mm
	wheelbase	1188mm
	ground clearance	180mm
motor	voltage	110-240V
	power	2000W
	grade ability	20°
controller		12T modular controller
Battery （lithium）	voltage	60V
	capacity	32AH
	mileage	60-70KM
	charge time	6-8H
speed	max speed	45km/h
tire	front wheel	3.00-10 vacuum tire
	rear wheel	3.00-10 vacuum tire
brake type	front wheel	disc brake
	rear wheel	drum brake
seat	position	2
	passenger	2
weight	weight(without battery)	52KG
	maximum load capacity	219KG
functions	one-click repair	yes
	P gear parking	yes
	3 speeds	yes
	reversing	yes
	cruise control	yes
	side stand power off	yes
	NFC	yes
	remote alarm	yes

Chapter 3: Functions

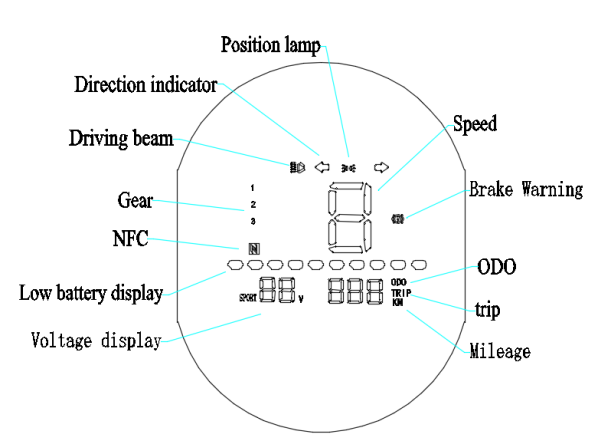

1. Speedometer

NO	Switch	Descriptions
1	Speed	Speed indicator（km/h).
2	Ready to start	Indicating the motorcycle is ready to be used.
3	Gear	Change gears to 1-2-3 indicator.
4	Parking	Indicating the condition of the scooter, scooter stopped and braking state light on.
5	Reversing	Indicating the reversing gear light on.
6	Low battery display	low battery capacity indicator.
7	Direction indicator	Indicating turn on the left or right signal indicator.
8	Driving beam	Indicating turn on the high beam.
9	ODO	Riding mileages display.
10	Position lamp	turn on the position lamp, will light up.
11	Motor fault indicator	this light illuminates when the motor malfunctions.
12	throttle fault indicator	this light illuminates when the throttle malfunctions.
13	controller fault indicator	this light illuminates when the controller malfunctions.
14	brake warning indicator	this light illuminates when the handbrake is engaged.
15	cruise control indicator	this indicator light illuminates when the cruise control button is pressed while the vehicle is in motion.
16	parking brake indicator	this light illuminates when the brake is engaged after pressing the p button on the steering wheel, indicating that the vehicle is in a braking state.

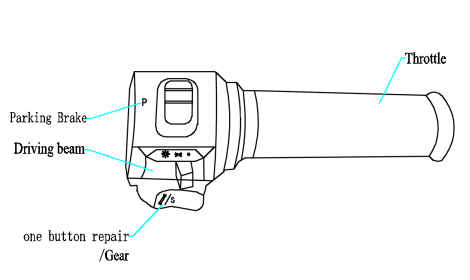

1. Handlebar switches

NO	Switch	Description
1	Hazard warning switch	Pressing this light will illuminate,indicating a warning to surrounding vehicles and pedestrians about the presence of a vehicle fault,dangerous condition, or specialsituation, reminding them to avoid.
2	Gear	Pressing this switch to adjust the vehicle's gear position.
3	Direction indicator	When the turn switch is in the lower position, the indicator light on the left side of the dashboard lights up, and the vehicle moves to the left; when the turn switch is in the upper position, the indicator light on the right side of the dashboard lights up, and the vehicle moves to the right.
4	Driving beam	After turning on the high beam, the high beam lights up.
5	Horn	Press the button, the horn sounds
6	Throttle	In standby mode, turn the handle to accelerate the vehicle, and release the handle to decelerate and stop.
7	Parking brake	Press this button to put the vehicle in parking mode. When the throttle handle is turned, the vehicle cannot move and requires a repair item to restore drivability.
8	One-Click repair	When the vehicle is in park mode or constant speed cruise mode,pressing this button will restore the vehicle to its initial standby mode.The original operating mode will beterminated.

Chapter 4: Riding operation

1. Pre-use Inspection

Please note that before use, support the vehicle with center kickstand, and start the following checks:

• Check the steering column for smooth rotation and any looseness or jamming.
• Check the battery for sufficient charge to ensure reliable driving.
• Check the braking system for smooth and reliable operation.
• Check the surface condition and inflation pressure of the front and rear tires.
• Check the accelerator for smooth and effective operation and the electric motor for normal functioning.

2. Start-up

• Secure the vehicle support, and the driver should sit in the driver's seat with their hand on the throttle and engage the handbrake.
• Insert the key into the ignition switch and turn it to the "ON" position. Power is on; check the battery level using the power indicator. Release the handbrake only after confirming there are no abnormalities. If any abnormalities are detected, immediately turn the key to turn off the power.

3. Driving

• Forward: In the startup state, hold the handlebar with both hands, gently turn the throttle handle, the vehicle starts moving forward, and you can control the vehicle's forward speed with the throttle.
• Reverse: After braking, put the vehicle in a stopped state, long press the reverse button, then gently turn the throttle handle, the vehicle starts to reverse, release this button to stop reversing. You can control the vehicle's speed with the throttle.
• When starting uphill, pull the handbrake, shift the gear to "1", slowly turn the throttle handle, and simultaneously slowly release the handbrake. After normal driving, you can shift to 2nd or 3rd gear.

4. Methods for handling situations during driving

• When braking is needed, release the accelerator with the right hand, grip the handbrake firmly with both hands until the vehicle stops, press the "P" switch, and the vehicle enters a braking state. In this state, turning the throttle handle will not allow the vehicle to move. If you need to continue driving, press "”.The vehicle returns to standby mode, turn the throttle handle, and the vehicle can continue to drive.
• When turning, it is necessary to turn on the trun signals, and off the signals after turning.
• During driving, if the power indicator is in the red area, it indicates that the power is insufficient, and it should be charged in time to extend the battery life.
• In low visibility conditions, please turn on your headlights promptly and adjust the high/low beam switch as needed.
• When going downhill with a heavy load or on a steep slope, use a low gear. If the speed is too fast, use the brakes to control the speed, allowing the vehicle to enter the steep slope descent mode to ensure safe driving.

5. Parking

If you stop driving, park the vehicle securely, turn the electric lock to the "OFF" position, remove the key, pull down the side stand, and use it to support the vehicle.

6. Driving in rain or snow weather

Please drive cautiously in rainy or snowy weather.

Chapter 5: Charging precautions

• When charging, turn off the vehicle power switch and remove the key to prevent accidental factors from causing the vehicle to start suddenly.
• You must use the charger equipped with this vehicle for charging. Pay attention to the battery type and applicable voltage that the charger can charge, and strictly prohibit mixing use.
• Do not charge in enclosed places or where the temperature is very high or where flammable and explosive items are placed.
• When charging, first connect the charger's output plug to the battery's charging socket, then connect the charger's input plug to a 110V AC power source. A red light on the charger indicates it is charging; when the indicator light turns green, the battery is fully charged.
• During the charging process, if the indicator light is abnormal, an odor is detected, or the charger casing becomes excessively hot, stop charging immediately and inspect the charger.
• After charging is complete, first unplug the power cord, then unplug the connector to the battery. It is strictly forbidden to leave the charger connected to the AC power supply for an extended period of time without charging.
• When using or storing the charger, avoid water or other liquids entering to prevent internal short circuits of the charger. When it is confirmed that the battery is low and needs charging, ensure that the input power plug makes reliable contact with the AC power socket.

Chapter 6: Battery maintenance

• When the new vehicle is used for the first time, the battery should be fully charged.
• After each use of the bike, check the battery level. If the battery is low, charge it promptly. If the bike is stored unused for a long period, it should also be charged regularly (once a month) to help extend the battery's service life.
• While riding, if the battery level indicator is in the red area, charge it as soon as possible. Avoid over-discharging. Undercharging, overcharging, and over-discharging can all damage the battery and shorten its service life.
• Avoid getting wet.
• Keep the battery surface clean and dry, and avoid proximity to open flames or high-temperature heat sources. During hot seasons, it is strictly prohibited to expose it to direct sunlight.
• Ensure good ventilation around the battery.
• Used batteries should not be discarded or disposed of arbitrarily to avoid environmental pollution.

Chapter 7: Motor usage and maintenance

• The motor should be used in a dry and well-ventilated environment to facilitate rapid heat dissipation.
• When starting, do not set the accelerator to the maximum to avoid excessive starting current that could damage the motor; if the vehicle is obstructed and cannot start, do not repeatedly attempt to start it. Wait to troubleshoot and resolve the issue before starting again.
• The battery voltage should be maintained between 63-78V, otherwise it may affect the normal operation of the motor or prevent it from reaching its rated performance.
• The motor should be avoided from contact with water, and it is prohibited to ride in relatively high water surfaces.
• When driving on poor road conditions, the motor should operate at low speed to avoid strong vibrations.
• When the user checks and maintains the motor, it must be done under power-off conditions, checking the tightness of the bolts, and tightening them in a timely manner if loose.

Chapter 8: Maintenance and maintenance schedule table

The vehicle should be maintained and serviced according to regulations, which can ensure your driving safety and also extend the vehicle's service life.

Item	Content
Steering	Inspect and lubricate every 1000 km
Brakes	Inspect and adjust monthly
Fasteners	Inspect and tighten every 1000 km
Tires	Inspect and adjust every 1000 km
Battery	Inspect and clean monthly
Motor	Inspect monthly

Chapter 9: Common faults and situation

Fault conditions	Possible reason	Solution
The power indicator light is off	Poor battery electric contact	Reinstall the battery
	Fuse burnt out	Adjust the fuse
	Power switch is damaged	Replace the power switch
The power indicator light is on, but the motor does not work	Motor not connected	The motor lead and the controller have poor contact or are falling off.
	The left and right brake handles are not reset	Reset the brake handle
	The left and right handle start switches have poor contact or are damaged	Repair or replace the start switch
	Controller circuit failure	go to repair center for repair
Insufficient battery life	On slopes and against the wind driving	Human-assisted driving
	Insufficient tire pressure or overloading	Inflate the tires
	Charging time is too short and the power is insufficient	Charge according to the prescribed method
Slow speed,weak driving force	On slopes and against the wind driving	Human-assisted driving
	Electrical component failure	go to repair center for repair
Unable to charge	Charger failure	go to repair center for repair
	Battery failure	go to repair center for repair
Charger abnormality	Circuit failure causes strange noise, odor, or heat	Stop charging immediately,go to repair center for repair
The charger has no charging indicator	The power plug is not properly plugged in	Reconnect the power plug
	Indicator light is broken	Replace indicator light
Others	When you encounter a fault that cannot be eliminated under the above conditions or other faults that cannot be eliminated	If you encounter such a situation, please contact the supplier or repair station. Do not open the above parts without authorization, otherwise you may lose our company's maintenance commitment.
